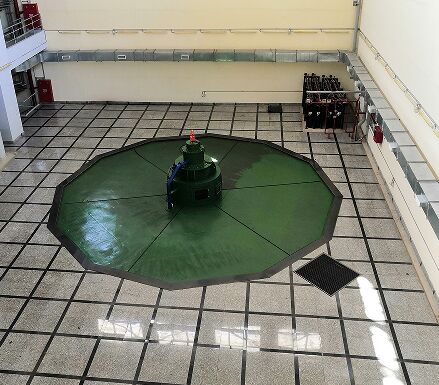

Stainless Steel Blade Fixed Blades Runner Type Kaplan Hydro Turbine with Over 30 Years Life Time
商品の詳細:
| ブランド名: | Wawushan |
| 証明: | ISO9001 |
| モデル番号: | ZDJ50234 |
お支払配送条件:
| Minimum Order Quantity: | 1 |
|---|---|
| 価格: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
詳細情報 |
|||
| 定格速度: | 500r/min | 一生: | 30年以上 |
|---|---|---|---|
| 発電機の種類: | シンクロン発電機 | 発電機の電圧: | 6-20KV |
| 定格電力: | 2-50MW | ランナータイプ: | 固定ブレード/調整ブレード |
| 材料: | ステンレス鋼の刃 | スパイラルケース: | 炭素鋼 |
| ハイライト: | Stainless Steel Blade Kaplan Hydro Turbine,Fixed Blades Runner Type Hydraulic Water Turbine,Over 30 Years Life Time Hydroelectric Turbine |
||
製品の説明
Stainless Steel CNC Kaplan Hydro Turbine
Advanced hydraulic water turbine designed for sustainable energy generation with fixed blades runner type and speed range of 100-300 RPM.
Product Overview
The Kaplan Hydro Turbine is a highly efficient hydraulic water turbine engineered to harness flowing water for sustainable energy generation. Featuring advanced engineering and robust construction, this turbine delivers superior performance and longevity for modern hydroelectric power projects.
Dual Blade Runner System
The turbine incorporates both fixed blades and regulator blades for precise water flow control. This configuration optimizes efficiency across varying operating conditions, making it ideal for sites with fluctuating water flow.
Vertical Layout Design
The vertical arrangement facilitates direct generator coupling, minimizes mechanical losses, and provides a compact installation footprint with simplified maintenance access.
Premium Material Construction
Blades are manufactured from high-grade stainless steel using CNC machining technology, ensuring exceptional precision, corrosion resistance, and long-term reliability.
Key Features
- Product Name: Kaplan Hydro Turbine
- Life Time: Over 30 Years
- Flow Rate: 16.00 M³/s
- Layout Pattern: Vertical
- Runner Type: Fixed Blades / Regulator Blades
- Rated Power: 2-50MW
- Efficient hydro power generator for sustainable energy production
- Advanced water power turbine technology for optimal hydraulic performance
- Durable hydraulic turbine system for long-term reliable operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Generator Type | Synchronous Generator |
| Runner Type | Fixed Blades/Regulator Blades |
| Speed Range | Typically 100 To 300 RPM |
| Generator Voltage | 6-20KV |
| Water Inlet | Vertical |
| Life Time | Over 30 Years |
| Blade Material | Stainless Steel With CNC |
| Rated Head | 2-200m |
| Rated Speed | 500r/min |
| Layout Pattern | Vertical |
Applications
The Wawushan Kaplan Hydro Turbine model ZDJ502 is ideal for small to medium-scale hydroelectric power plants, remote communities, irrigation channels, dam spillways, and hybrid renewable energy systems.
Customization Options
Available with minimum order quantity of 1 unit, priced between $50,000-$100,000. Features include rated power range of 2-50MW, synchronous generator, and export packaging with 6-month delivery time.
Technical Support & Services
Our comprehensive support includes installation guidance, routine maintenance, troubleshooting, performance optimization, spare parts supply, and training programs to ensure optimal turbine performance and longevity.
