詳細情報 |
|||
| 色: | ブレ | 動作温度: | -10°C〜50°C |
|---|---|---|---|
| キーワード: | 高頭水タービン | 制御システム: | ブラシレス励起 |
| ランナー径: | 1.0 m | 段階のタイプ: | 三相/単相 |
| 水頭部: | 180m | パワーレンジ: | 1400-2200KW |
| ハイライト: | 3Phase High Head Water Turbine,180 M Water Head Hydraulic Turbine,1400-2200 KW Power Range Axial Flow Generator |
||
製品の説明

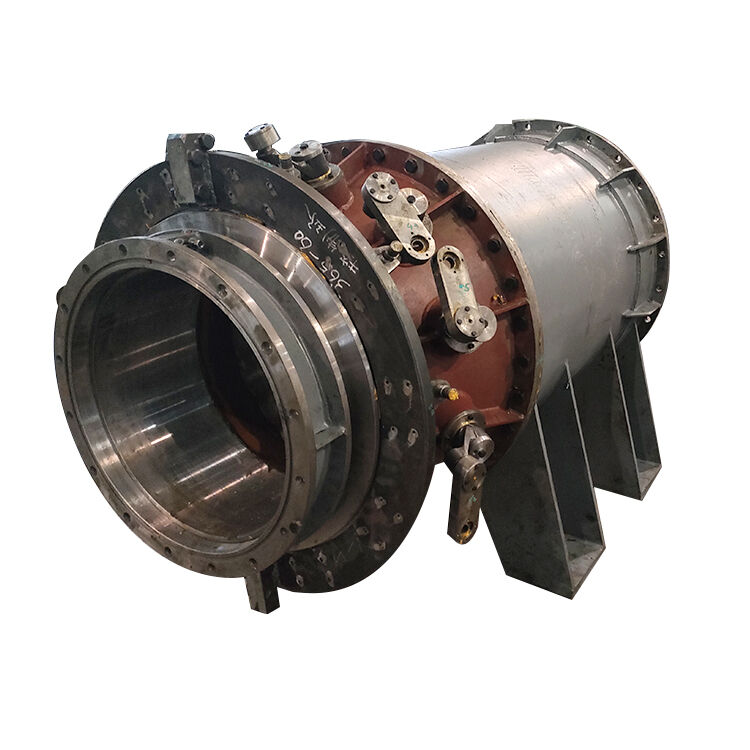

High Head Water Turbine Overview
The High Head Water Turbine is an advanced hydraulic turbine engineered to efficiently convert high-pressure water flow into electrical power. Featuring a 1.0 meter runner diameter, this compact yet powerful solution is ideal for diverse hydroelectric applications.
Key Features
- Product Name: High Head Water Turbine
- Phase Type: 3 Phase / 1 Phase
- Operating Temperature Range: -10°C to 50°C
- Rotation Speed: 1000 RPM
- Runner Diameter: 1.0 M
- Color: Blue
- Suitable for use as a bulb generator
- Efficient bulb turbine generator design
- Reliable performance for high head water applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Control System | Brushless Excitation |
| Power Range | 1400-2200 KW |
| Frequency | 50Hz/60Hz |
| Type | Hydraulic Turbine |
| Water Head | 180 M |
| Guide Vane | Stainless Steel |
| Runner Diameter | 1.0 M |
| Color | Blue |
| Rotation | 1000 RPM |
Applications
The Wawushan High Head Water Turbine (model T-202501) is designed for various hydroelectric power generation applications. With a head range of 50 to 700 meters and power output of 1400-2200 KW, it serves medium to large-scale projects including run-of-river plants, dammed reservoirs, and river diversion systems.
Customization Options
Wawushan offers comprehensive customization services for the High Head Water Turbine model XJ02-W-50/1*11. Our flexible solutions allow tailoring specifications to match specific site conditions and power requirements, supporting integration with bulb generators or tubular generators.
Support & Services
Our technical support team provides installation guidance, operational troubleshooting, and maintenance procedures. Services include system commissioning, performance testing, technical documentation, spare parts supply, and on-site service visits to ensure optimal turbine performance and longevity.
Material & Construction
Constructed from high-quality stainless steel, the runner ensures exceptional durability and corrosion resistance for long-term operation in harsh aquatic environments. The robust construction maintains structural integrity under demanding high head water flow conditions.
