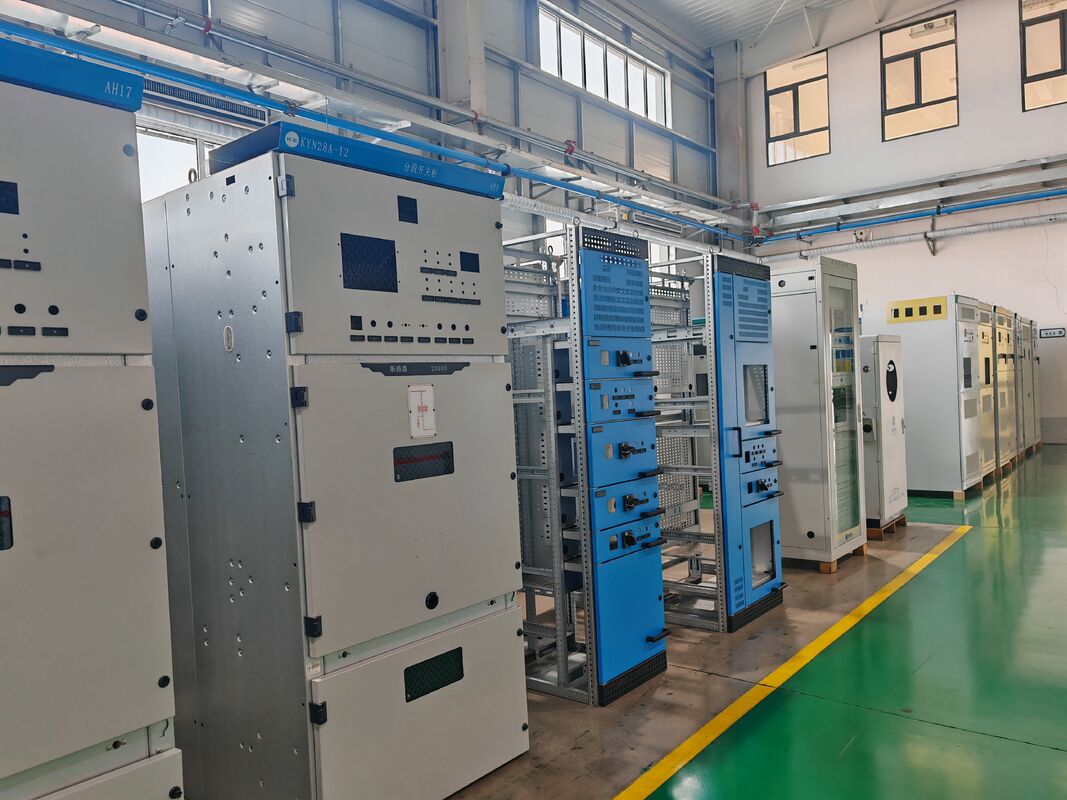

High Efficiency Generator Excitation System with 110V to 690V Voltage Range and 0 to 500A Current Range for Synchronous Generators
商品の詳細:
| ブランド名: | Wawushan |
| 証明: | ISO9001 |
| モデル番号: | EX-202505 |
お支払配送条件:
| Minimum Order Quantity: | 1 |
|---|---|
| 価格: | 5000-60000USD |
| パッケージの詳細: | 標準 |
| Delivery Time: | 3 Months |
| Payment Terms: | T/T |
| Supply Ability: | 300 Set Per Unit |
|
詳細情報 |
|||
| 入力交流電圧: | 100V | 評価効率: | 96% |
|---|---|---|---|
| レイアウト: | 水平 | 色: | 緑 |
| 定格電流: | 5A | タイプ: | シンクロン発電機 |
| VoltageRange: | 110V～690V | 寸法: | 3Mx3Mx2.5M |
| ハイライト: | 96% Efficiency Generator Excitation System,110V to 690V Voltage Range Excitation System,0 to 500A Current Range Synchronous Generator Excitation System |
||
製品の説明
Fixed Runner Blade Excitation System with 96.20% Efficiency
Designed to improve generator excitation and voltage stability, this advanced excitation system provides precise and reliable excitation current to generator rotor windings, ensuring stable voltage output and optimal performance across various power generation applications.
Product Overview
The Generator Excitation System is engineered with advanced technology and high-quality materials to deliver exceptional efficiency and durability. This essential component maintains generator voltage stability under varying load conditions while minimizing energy losses and operational costs.
Key Features
- Fixed runner blade design for consistent performance
- 96.20% rated efficiency for reduced energy losses
- Rated current of 5A for precise excitation control
- Wide voltage range: 110V to 690V
- Broad current range: 0 to 500A
- 50Hz rated frequency compatibility
- Automatic Voltage Regulator (AVR) control
- Durable green housing for easy identification
- Horizontal layout design
Technical Specifications
| Parameter | Specification |
|---|---|
| Layout | Horizontal |
| Efficiency | 96.20% |
| Current Range | 0 to 500A |
| Rated Current | 5A |
| Type | Synchronous Generator |
| Input AC Voltage | 100V |
| Voltage Range | 110V to 690V |
| Color | Green |
| Rated Frequency | 50Hz |
| Output Capacity | 100KW to 20MW |
Applications
This excitation system is ideal for power generation plants including thermal, hydroelectric, and renewable energy facilities. It's also suitable for industrial settings such as manufacturing plants, mining operations, and large-scale construction projects where stable power supply and precise voltage regulation are critical.
Customization & Ordering
The Wawushan EX-202501 Generator Excitation System offers flexible ordering options with a minimum order quantity of 1 unit. Priced between $5,000 and $60,000 USD, with delivery within 3 months and T/T payment terms. ISO9001 certified and manufactured in China.
Support & Services
We provide comprehensive technical support including installation assistance, commissioning, troubleshooting, and maintenance services. Our team offers system design consultation, customized training programs, preventive maintenance schedules, and firmware updates to ensure optimal system performance.
Performance Benefits
This excitation system ensures enhanced voltage regulation, improved generator response to load changes, reduced operational costs, and extended generator lifespan through precise excitation control and high-efficiency operation.
